In the tablet PC market, where competition is hot, KTC increase input and first to launch 8 inches ultrathin quad-core 3G tablet PC, the model is 800P31C.

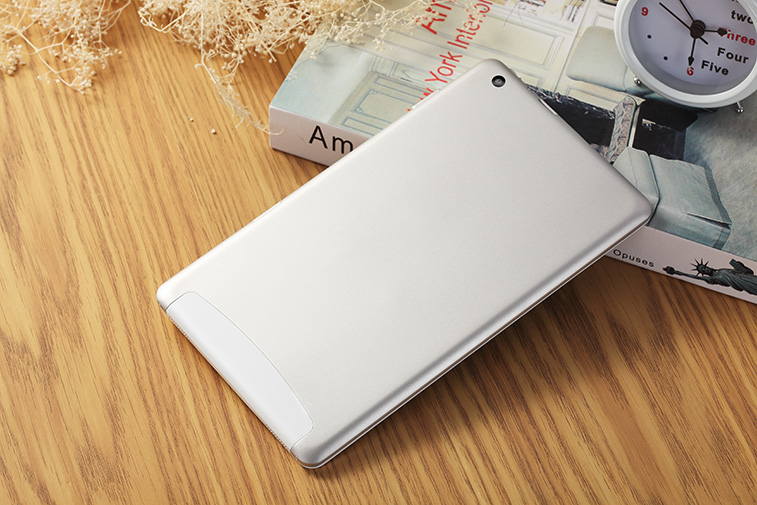

800P31C Tablet PC abandon the previous moderate design, integrate into ultrathin design concept. The whole thickness is 8.7mm and 7.4mm ultra-narrow frame design, which make it has comfortable holding effect; White panel with silver aluminum alloy back cover and special bright side processing, makes the product look more beautiful; In addition, no extra button in front of machine, shows the machine simple and fashion.
800P31C has a powerful hardware configuration: using quad-core cortex-A9 CPU processor and SGX544 GPU graphics processor, support OpenGL ES 2.0 and VG rendering technology, makes the machine running faster; The powerful hardware configuration makes the tablet PC support 1080P full HD video and support more popular format videos at the same time, you can see what you want.
800P31C tablet PC are using Samsung’s latest 1280*800 IPS full-view HD panel. The most 8 inches tablet PC resolution in market are 1024*768, 4:3; our product’s resolution is 1280*800, 16:10, provide the user with new choice. We have sufficient guarantee with the panel resource of this products, KTC independent research and development of its panel backlight, backlight using ultrathin design and module quality was recognised by Samsung, we supply to Samsung currently. The mass production of this module provide us with stable panel resources; The product using reinforced touch glass and multi-channel touch control technology, makes the product has the characteristics such as high strength, quick response and smooth touch, give you a different experience; The specifications of product as below:
Click to know more info
Specification parameter:
| 800P31C Product technical specification | ||||||
| Items | Project | Description | ||||
| Informations | Scheme | MTK8389 | ||||
| Model | 800P31C | |||||
| CPU | MT8389 28NM Cortex A7 quad-core dominant frequency 1.2G SGX544 1080P HD@30Fps Rel.8 HSPA+(42/11M)ultra-low power consumption | |||||
| RAM | 1GB DDR3 | |||||
| ROM | 8GB（8GB/16GB optional） | |||||
| Network system | WCDMA+GSM | |||||
| Frequency band | WCDMA：850+2100MHz GSM:850/900/1800/1900MHz | |||||
| System | Android4.2 | |||||
| Market positioning | Product positioning | middle and high-end | ||||
| Target market | Domestic、foreign | |||||
| Selling points | 8.0 inches high resolution 800*1280 Samsung PLS screen ultrathin frame design, quad-core withGSM/WCDMA/WIFI/BT/GPS/FM | |||||
| Configurations | Display | 8.0 inches 800*1280 Samsung PLS screen | ||||
| Capacitive touch screen | G+G capacitive touch screen | |||||
| Camera | Front-facing 2 million camera/rear-facing 5 million camera with AF auto-focus | |||||
| Button | Top side power on key+two sides volume key | |||||
| MIC/receiver | With MIC（record and call）/with receiver | |||||
| Speaker | Dual speakers stereo design | |||||
| Motor | With Vibration feed back | |||||
| Battery capacity | 3.7V 4200mA lithium battery | |||||
| Ambient light test | Support ambient light test（Lux Auto Brightness，save more power） | |||||
| SIM | micro SIM card（nonsupport hot plug） | |||||
| TF | Support Micro TF，maximum support 32GB | |||||
| HALL switch | Support HALL switch（This function like the IPAD MINI, cover the leather sheath and it will auto screensaver, the leather sheath must with magnet） | |||||
| FM | Yes | |||||
| Bluetooth/WIFI/GPS | Support bluetooth 3.0+HS, support WiFi 802.11n/b/g/satellite positioning | |||||
| Gravity sensor | Yes | |||||
| Distance sensor | Support distance sensor, it will auto screen off when close to people | |||||
| OTG | Support U disk, mouse, keyboard | |||||
| Application and user experience | Mobile storage | Can use as mobile hard disk | ||||
| Input method | Android keyboard,sogou input method,Baidu input method（can custom installation） | |||||
| Audio Play | MP1/MP2/WMA/WAV/OGG/M4A/AAC/AC3/FLAC | |||||
| Video Play | MPEG2/MPEG4/AVC1/WMV3/VP8 | |||||
| Image format | Support JPG、BMP、PNG, etc format and support rotation/slide play/zoom function | |||||
| Sound mode | Normal/classical/dance/straightness/folk song/ heavy metal/Hip-hop/jazz/popular/rock/user | |||||
| Language | Support multiple languages | |||||
| Repeat mode | Random play、single cycle、all cycle | |||||
| Other application | 2D/3D graphics processor，support OpenGL ES 2.0 and Open VG | |||||
| Web browser、online chat、E-mail、e-book、explorer | ||||||
| Open website | Fast browsing speed | |||||
| SKYPE | Not only support QQ video and call，but support SKYPE video call. | |||||
| Technical index | Cruising ability | Standby current：8mA standby time：21 days | ||||
| Audio playing current：160-220mA cruising ability：more than 18H | ||||||
| Video playing current（1080P）：160-220mA cruising ability：6H以上 | ||||||
| Charging port | 5V/2A charger，the port same as USB port，Micro 5PIN，support PC charging | |||||
| USB | Micro 5PIN USB port | |||||
| Earphone | 3.5MM earphone port, support line control earphone | |||||
| Size | 213.09*123.08*8.7MM | |||||
| Machine mode | Straight panel,vertical screen,metals back cover | |||||
| Weight | 345g | |||||
| Color | White surface cover/silver back cover | |||||
| Upgrade ways | Tools upgrade（see software upgrade textbook in detail） | |||||
| Operating temperature | （-5℃～40℃） | |||||
| Accessories | Standard configuration：screen protection film 、back cover protection film、bag、instruction、certificate、warranty card、Micro USB cable、color box、paster for color box；Optional：OTG cable、5V 2A charger（without cable） | |||||
